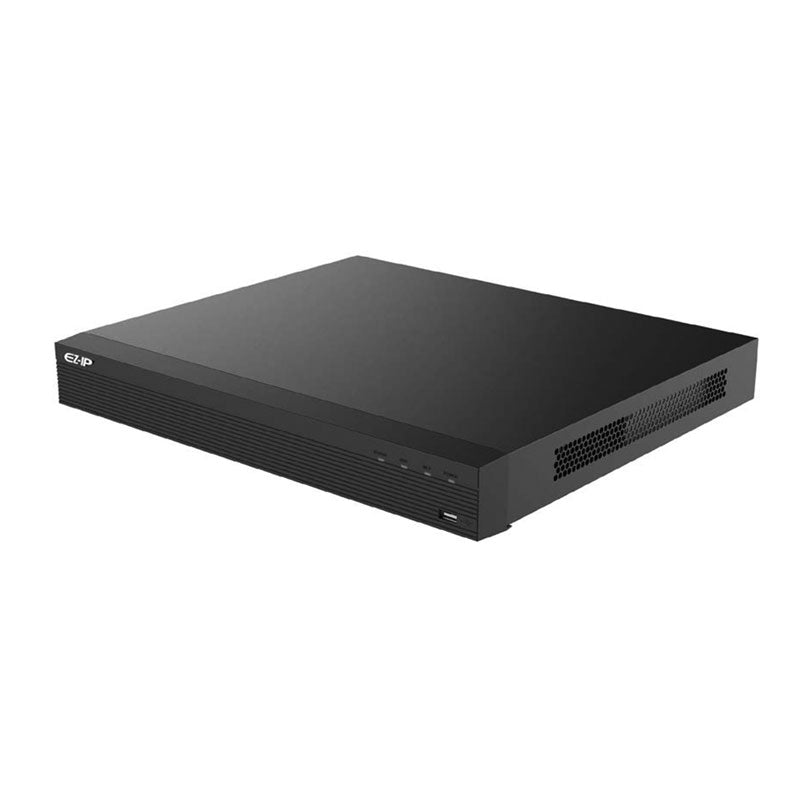

EZIP 16 Channel 1U 16PoE PRO Network Video Recorder

EZ-N416PRO
EZIP 16 Channel 1U 16PoE PRO Network Video Recorder

The EZ‑IP EZ‑N416PRO simplifies 16‑camera deployments by combining a compact 1U NVR with an integrated 16‑port PoE switch. Record up to 12MP per channel with Smart H.265+ efficiency, display on HDMI up to 4K (plus VGA 1080p), and store months of footage on two SATA bays (up to 20 TB each). ONVIF interoperability and plug‑and‑play PoE make installs fast and tidy.

Specifications

• 16 × IP channels — Built‑in 16‑port PoE (802.3af/at) for plug‑and‑play cameras.
• 12MP recording — Crisp capture, configurable down to QCIF.
• Smart H.265+ — Reduce storage/bandwidth vs. H.264 while maintaining quality.
• 4K display — HDMI up to 3840×2160 plus VGA up to 1920×1080.
• Dual‑bay storage — 2 × SATA bays, each up to 20TB; quick USB export.
• Real‑world throughput — 160 Mbps incoming/record, 80 Mbps outgoing.
• Smart functions (via camera) — IVS, SMD human/vehicle, people counting, heat map, face detect/recognition.
• ONVIF/SDK support — Broad camera/VMS interoperability.
• Quiet, compact 1U — Small footprint for counters, offices & back rooms.

• Product Overview - Datasheet
