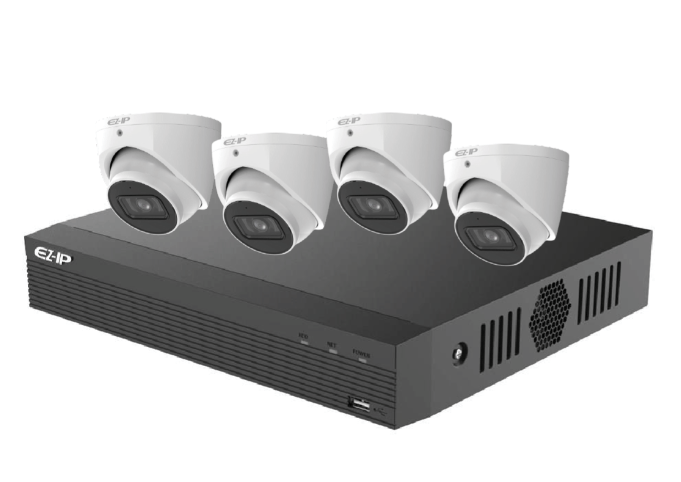

EZIP 4 Channel PRO Network Video Recorder + 4 x 6MP SMD Camera + 2TB HDD Kit
EZIP 4 Channel PRO Network Video Recorder + 4 x 6MP SMD Camera + 2TB HDD Kit
KIT INCLUDES
1 x EZIP 4 Channel Compact 1U 4PoE PRO Network Video Recorder (EZ-N44PRO)
1 x Seagate Skyhawk 2TB Surveillance HDD (ST2000VX016)
4 x EZIP 6MP Outdoor PoE Camera 2.8mm Lens (EZ-IPC-T1B63-SMD)
EZ-N44PRO
EZIP 4 Channel Compact 1U 4PoE PRO Network Video Recorder
FEATURES
• It supports 4K resolution for scenes that require highly detailed images, and can serve as the edge, central, or backup storage with an intuitive shortcut menu for remote management and control.
• When an IPC is connected to the NVR, a variety of AI functions become available such as face detection, perimeter protection, and people counting.
• This NVR is both cost-effective and easy-to-install, making it ideal for a wide range of applications.
SMD Plus by Camera
• With intelligent algorithm, Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.
Face Detection by Camera
• Face detection is to detect if there is any human face appearing in the video.
• This technology adopts a deep learning algorithm to support face detection, tracking, optimization and capturing, and then output the best face snapshot.
Face Recognition by Camera
• Face Recognition technology extracts the features of captured faces and compares them with that in face database.
• Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats.
• Max. decoding capability: 8 × 1080p@30 fps or 4 × 4 MP@30 fps.
• Max. 80/80/60 Mbps incoming/recording/outgoing bandwidth.
• Supports IP cameras with a resolution up to 12 MP.
• AI by Camera supports face detection and recognition, perimeter protection, SMD Plus, people counting, stereo analysis and heat map.
• One-click arming and disarming.
Perimeter Protection by Camera
• Automatically filters out false alarms caused by animals, rustling leaves, bright lights, etc.
• Enables system to act secondary recognition for the targets. Improves alarm accuracy.
Stereo Analysis by Camera
• With deep learning algorithm and 3-dimensional scene information, Stereo Analysis technology can recognize people's behaviors, such as fall detection, violence detection, stay detection, and space exception, and then generates alarm signals and triggers linkage.
Heat Map by Camera
• Heat map technology is used to display the crowd density and people appearance probability.
• Export and display the crowd status by different colors.
• Generally, the crowd status is the statistics of people quantity in space and time dimensions.
Seagate Skyhawk 2TB Surveillance HDD
ST2000VX016
FEATURES
• Seagate Skyhawk 2TB HDD 5400rpm 256MB
• Introducing the Seagate Skyhawk 2TB ST2000VX016, a surveillance storage solution built specifically to satisfy the needs of contemporary security systems.
• This hard drive is a crucial part of protecting your priceless data because of its sophisticated features and strong performance.
• Seagate’s Skyhawk series is well-known for its dependability and robustness in surveillance applications, and the ST2000VX016 carries on this heritage.
• This drive’s 2TB capacity gives you enough room to store high-definition video footage from several cameras, enabling you to clearly record every important moment.
• Surveillance by Skyhawk ST2000VX016 is excellent around-the-clock, and it can handle difficult read and write operations.
• It is perfect for systems with multiple simultaneous camera recordings because of its improved workload rating.
• This robustness guarantees the smooth operation of your surveillance system, continuously safeguarding your business or property.
• ImagePerfect firmware is one of the most notable aspects of the Skyhawk series.
• This firmware minimizes downtime and frame loss by optimizing the drive for surveillance workloads.
• Unlike traditional hard drives, the drive can manage the particular difficulties of surveillance applications, like multiple streams and long recording times.
• Rotational vibration sensors, which are included with the Skyhawk ST2000VX016, help lessen the effects of vibration in multi-drive systems.
• This is especially important in larger surveillance setups where several drives are operating simultaneously.
• Better dependability and steady performance follow, guaranteeing that the drive performs optimally even under taxing circumstances.
• Seagate’s Rescue Data Recovery Services are included with the Skyhawk 2TB ST2000VX016 for additional peace of mind.
• This service provides an additional level of protection for your priceless surveillance footage in the unfortunate event of data loss by helping you recover lost files.
• This preventive action demonstrates Seagate’s dedication to both customer satisfaction and data integrity.
• The Skyhawk ST2000VX016’s 3.5-inch form factor and SATA interface make installation a snap.
• The drive is a flexible option for security system integrators and do-it-yourselfers alike because it is compatible with a large variety of surveillance DVRs and NVRs.
• To sum up, the Seagate Skyhawk 2TB ST2000VX016 is a dependable and powerful storage option designed specifically for surveillance uses.
• Its capability, robustness, and unique features make it a great option for anyone looking to improve the dependability and efficiency of their surveillance system.
• Invest in the Skyhawk ST2000VX016 to guarantee optimal performance of your security infrastructure, offering uninterrupted protection and peace of mind.
• The Leader in Mass Data Storage Solutions | Seagate US
EZIP 6MP IR Fixed-focal Eyeball Network Camera
EZ-IPC-T1B63-SMD
FEATURES
• 1/2.7" CMOS image sensor, low luminance, and high definition image.
• Outputs max. 3072 × 2048 (3072× 2048) @20 fps, and supports 2688 × 1520 (2688 × 1520) @25/30 fps.
• H.265 codec, high compression rate, ultra-low bit rate.
• Built-in IR LED, and the max. illumination distance is 30 m.
• ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
• Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
• Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
• Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
• Supports max. 256 G Micro SD card; built in MIC.
• 12 VDC/PoE power supply.
• IP67 protection.
• SMD Plus.
Overview
• Launched by EZIP Technology, it is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm.
• It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets.
• Based on EZIP's advanced technologies, it provides intelligent, simple and inclusive products and solutions.
• With advanced deep learning algorithm, EZIP network camera supports intelligent functions, such as perimeter protection and smart motion detection.
• With starlight technology, this series camera provides a better image effect in the condition of low illuminance.
SMD Plus
• With intelligent algorithm, EZIP Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.
Smart H.265+ & Smart H.264+
• With advanced scene-adaptive rate control algorithm, EZIP smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.
Perimeter Protection
• With deep learning algorithm, EZIP Perimeter Protection technology can recognize human and vehicle accurately.
• In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion) are largely reduced.
WDR
• With advanced Wide Dynamic Range (WDR) technology, EZIP network camera provides clear details in the environment of strong brightness contrast.
• The bright and dark area can get clear video even in high brightness environment or with backlight shadow.
Cyber Security
• EZIP network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage.
• These technologies improve the camera's defense against external cyber threats and prevent malicious programs from compromising the device.
Protection (IP67, Wide Voltage)
• IP67: The camera passes a series of strict test on dust and soak.
• It has dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes.
• Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
